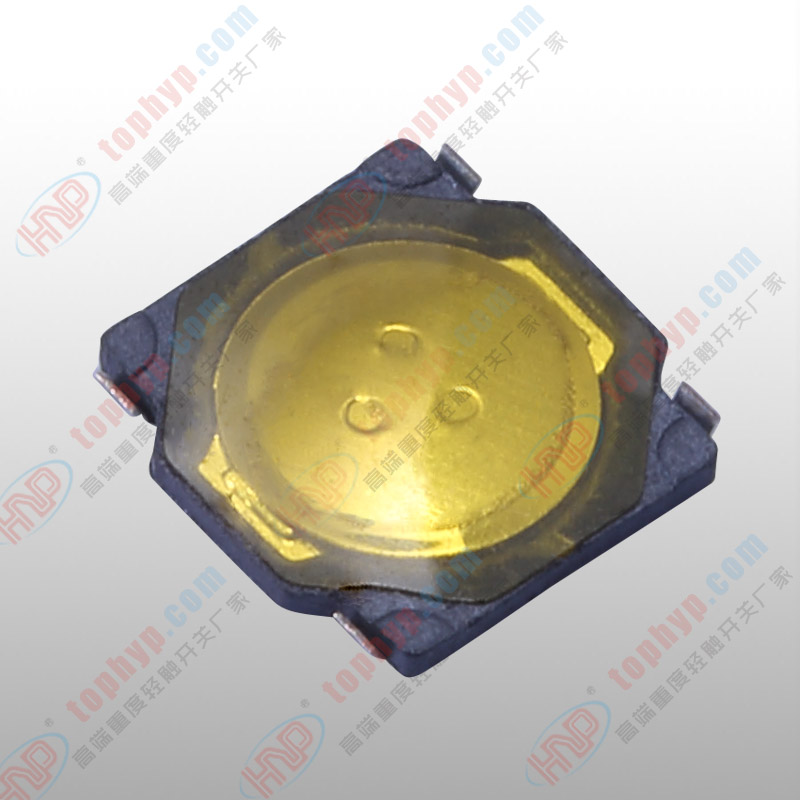

- product name: Top push SMD3.7*3.7*0.4mm
- Product Number: 1TS017C
- Material: PE/BRONZE/STAINLESS STEEL
- Scope of application: earphones, small instruments, 3C digital products, medical instruments
Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website!

Reference alternative:




| Item | Tact switch detail | Tact switch detail 2 |
| Article number | 1TS017C | 1TS017C |
| Model | 1TS017C | 1TS017C |
| Series | 1TS017 | 1TS017 |
| (LxW) (mm) | 3.7*3.7mm | 3.7*3.7mm |
| (H) (mm) | 0.4±0.1mm | 0.4±0.1mm |
| Installation height (mm) | 0.4±0.1mm | 0.4±0.1mm |
| Operation | Top-press type | Top-press type |
| Welding type | SMD | SMD |
| Live-fire type | Surface mount | Surface mount |
| Maximum rating | DC 12V/50mA | DC 12V/50mA |
| Contact resistance (<mΩ) | 500mΩ max. | 500mΩ max. |
| Insulation resistance (MΩ at 100V DC) | DC100V 60S 100MΩ min. | DC100V 60S 100MΩ min. |
| Withstanding voltage | AC250V(50~60HZ) 60S min. | AC250V(50~60HZ) 60S min. |
| Response time | <10ms (ON, OFF) | <10ms (ON, OFF) |
| Operating force | 160gf | 250gf |
| Stroke | Short stroke | Short stroke |
| Stroke (mm) | 0.13±0.05mm | 0.13±0.05mm |
| Operating life | 100000 or more | 100000 or more |
| Operating temperature | –40℃~+90℃ | –40℃~+90℃ |
| Storage temperature | –40℃~+90℃ | –40℃~+90℃ |
| Package style | Reel packaging | Reel packaging |
| Mini pakage | 10000PCS/reel | 10000PCS/reel |
| CTNS/QTY | 12reel/ctn | 12reel/ctn |
Dimensions:

Welding diagram:

Circuit diagram:
