- product name: Top push SMD2*4*3.5mm
- Product Number: 1TS003E
- Material: LCP/BRASS/STAINLESS STEEL
- Scope of application: Medical instruments, Driving recorders, Headphones, Smart speakers, Toys, Pad,Id card,
Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website!





| Item | Tact switch detail | Tact switch detail2 | Tact switch detail3 |
| Article number | 1TS003E | 1TS003E | 1TS003E |
| Model | 1TS003E | 1TS003E | 1TS003E |
| Series | 1TS003 | 1TS003 | 1TS003 |
| (LxW) (mm) | 2.0*4.0mm | 2.0*4.0mm | 2.0*4.0mm |
| (H) (mm) | 3.5±0.1mm | 3.5±0.1mm | 3.5±0.1mm |
| Installation height (mm) | 3.5±0.1mm | 3.5±0.1mm | 3.5±0.1mm |
| Operation | Side-press type | Side-press type | Side-press type |
| Welding type | SMD | SMD | SMD |
| Live-fire type | Surface mount | Surface mount | Surface mount |
| Maximum rating | DC 12V/50mA | DC 12V/50mA | DC 12V/50mA |
| Contact resistance (<mΩ) | 500mΩ max. | 500mΩ max. | 500mΩ max. |
| Insulation resistance (MΩ at 100V DC) | DC100V 60S 100MΩmin | DC100V 60S 100MΩmin | DC100V 60S 100MΩmin |
| Withstanding voltage | AC250V(50~60HZ)60Smin | AC250V(50~60HZ)60Smin | AC250V(50~60HZ)60Smin |
| Response time | <10ms (ON, OFF) | <10ms (ON, OFF) | <10ms (ON, OFF) |
| Operating force | 160gf | 180gf | 250gf |
| Stroke | Short stroke | Short stroke | Short stroke |
| Stroke (mm) | 0.2±0.1mm | 0.2±0.1mm | 0.2±0.1mm |
| Operating life | 100000 or more | 50000 or more | 15000 or more |
| Operating temperature | –40℃~+90℃ | –40℃~+90℃ | –40℃~+90℃ |
| Storage temperature | –40℃~+90℃ | –40℃~+90℃ | –40℃~+90℃ |
| Package style | Reel packaging | Reel packaging | Reel packaging |
| Mini pakage | 3000PCS/reel | 3000PCS/reel | 3000PCS/reel |
| CTNS/QTY | 13reel/ctn | 13reel/ctn | 13reel/ctn |

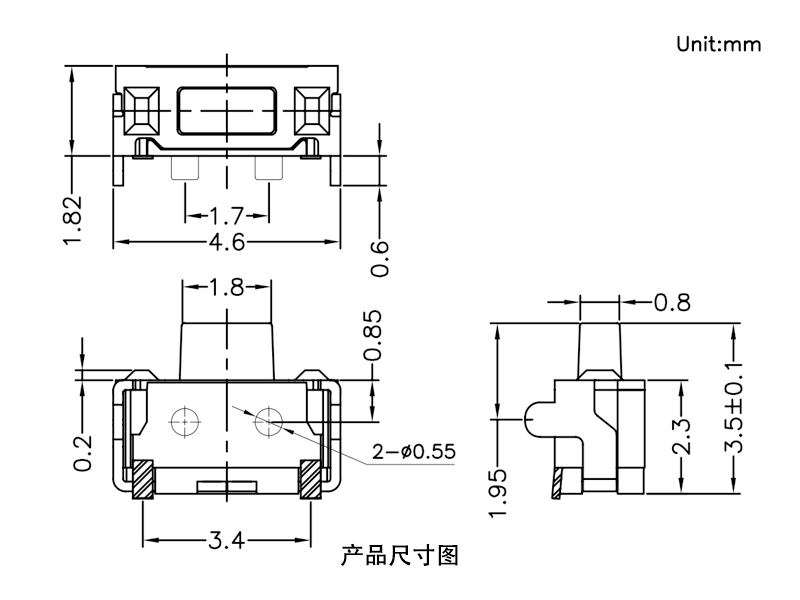

Dimensions:

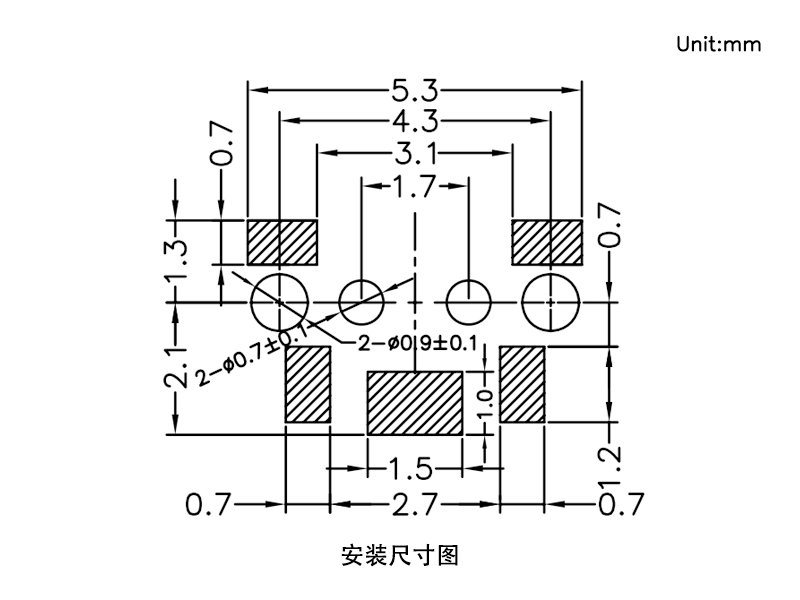

Welding diagram:

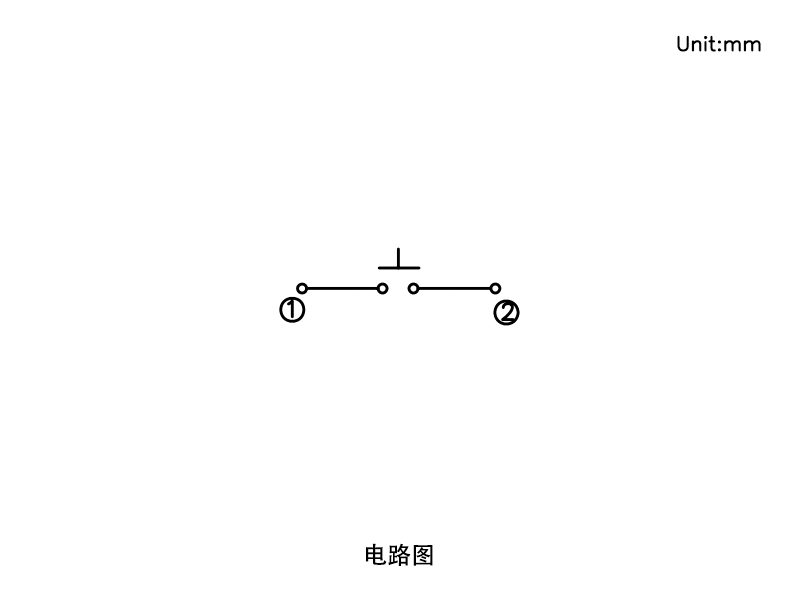

Circuit diagram:
